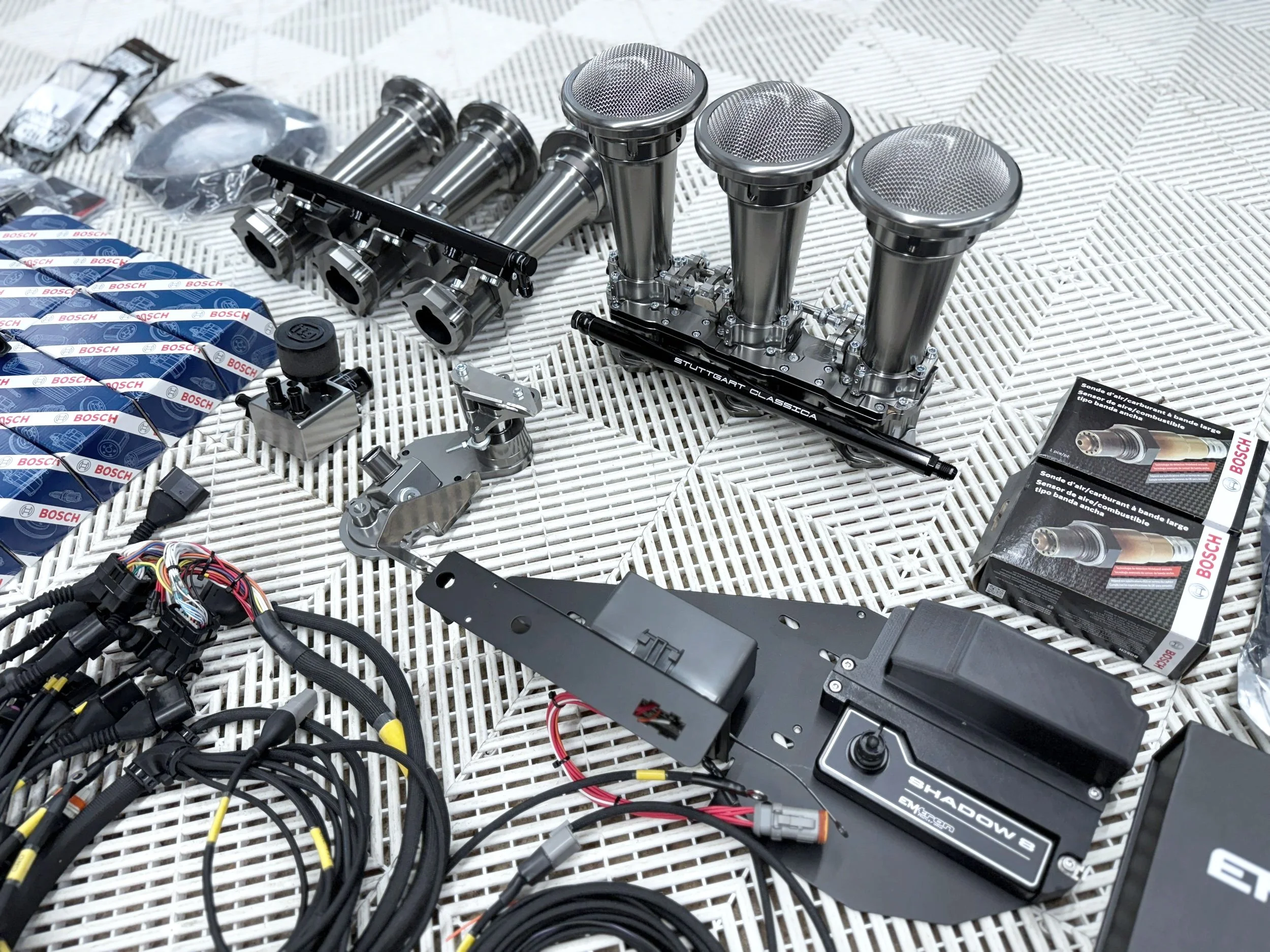

Complete EFI ITB Kit

from $17,995.00

We have put together this complete and comprehensive EFI ITB kit with help from industry experts in individual throttle body manufacturing, wiring harnesses manufacturing and ECU calibrators/tuners that are based the USA and able to remote tune or trave if required at extra cost.

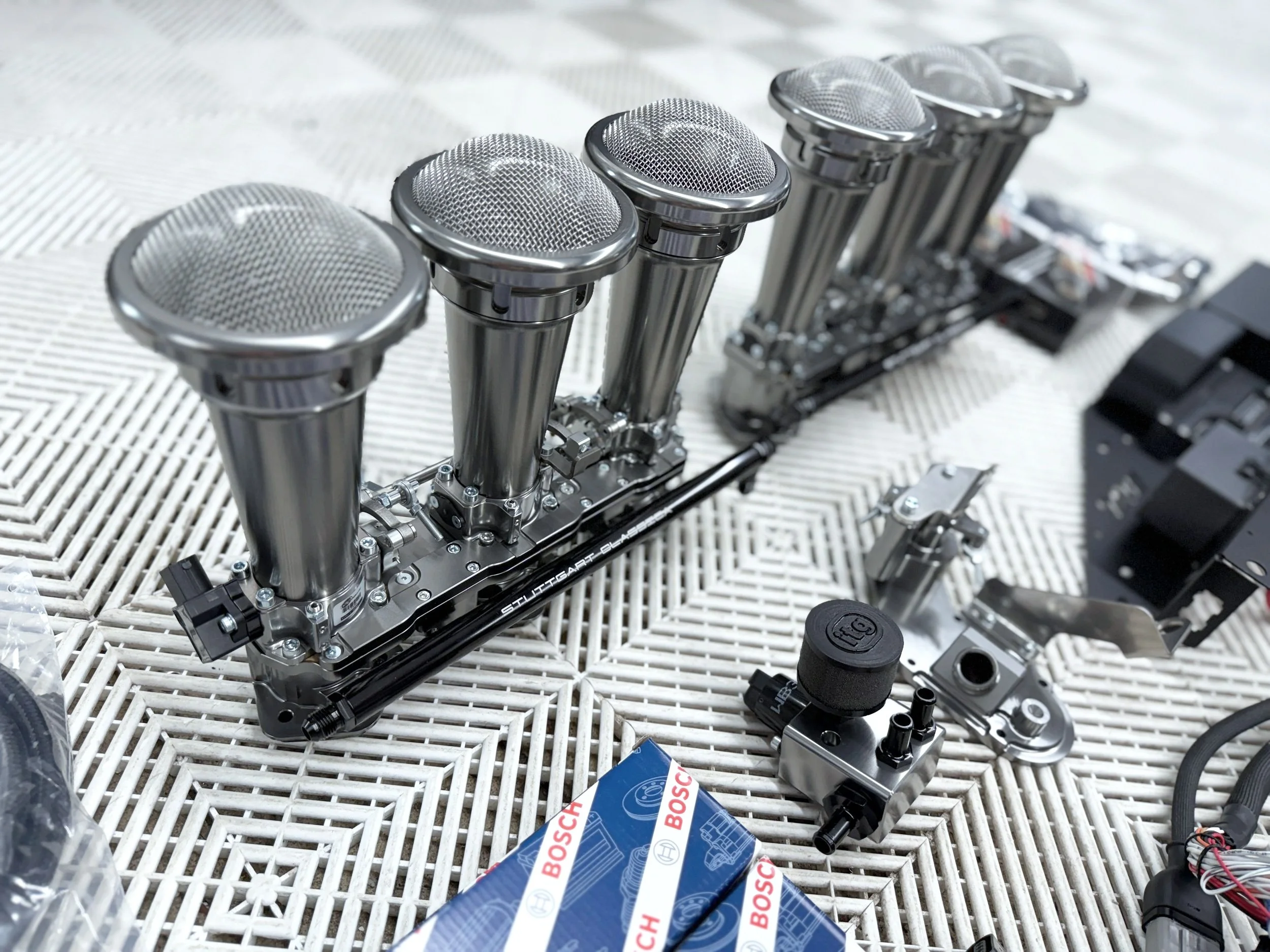

The throttle bodies come fully assembled and ready to bolt directly to the cylinder heads, with the following parts included:

  • Aerospace grade billet aluminium “shaft-less” individual throttle bodies

  • Throttle position sensor (TPS)

  • Billet aluminium fuel rails

  • Thermal insulation gaskets

  • Throttle linkage system which connects directly to the existing OEM cable pick-ups (drive by wire available for an extra $1000)

  • 2 bolt 911 fitment is available with 32mm, 35mm, 36mm, 39mm, 40mm, 42mm and 43mm inlet port size

  • 3 bolt 964/993 fitment is available with 42mm, 43mm, 44mm and 46mm inlet port size

  • Throttle sizes are 42mm, 45mm and 48mm

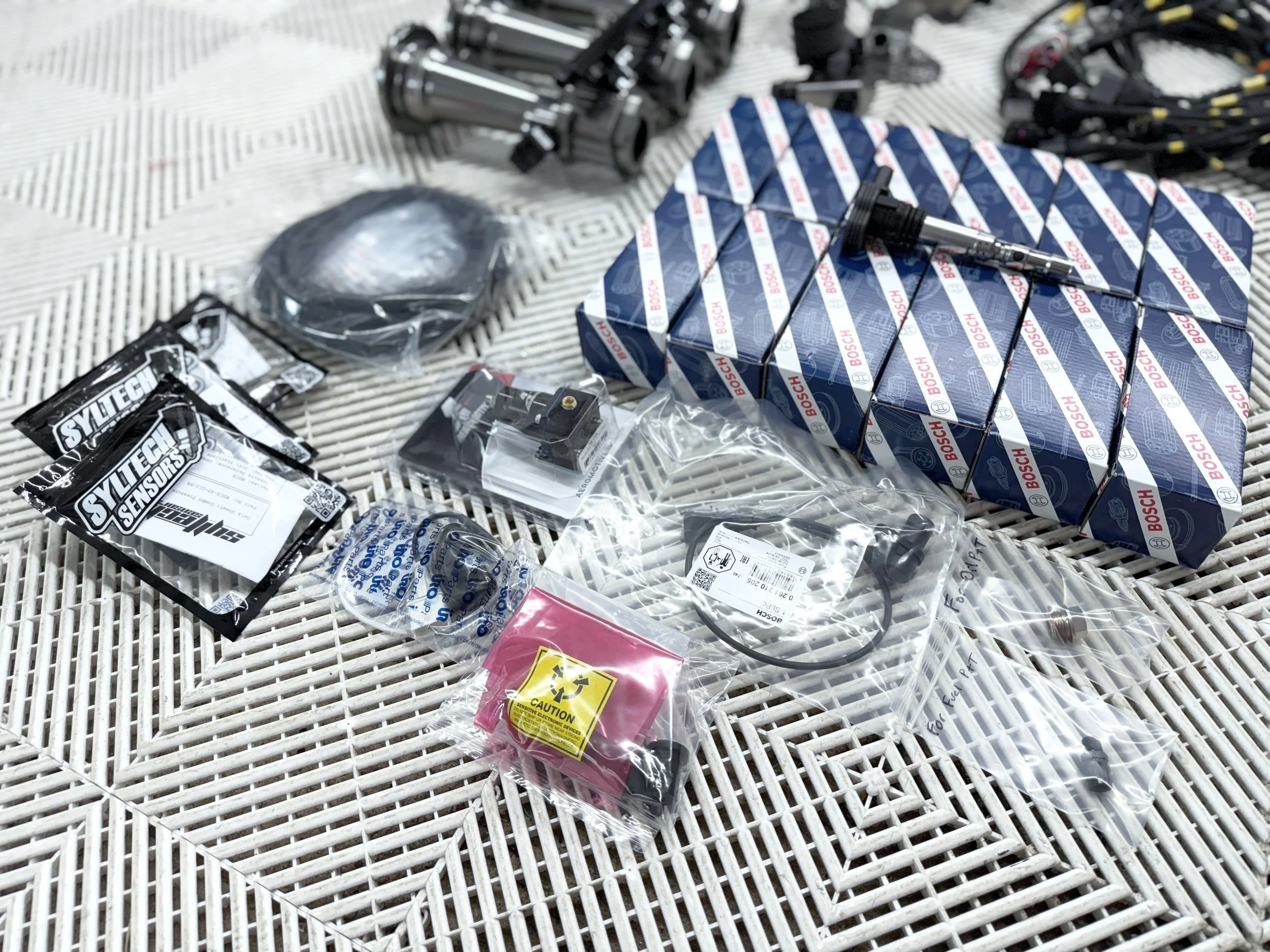

Other items include:

  • Fuelling system - includes Bosch fuel Injectors, Aeromotive fuel pressure regulator with adapter for ECU sensor, fuel lines, fittings and hoses

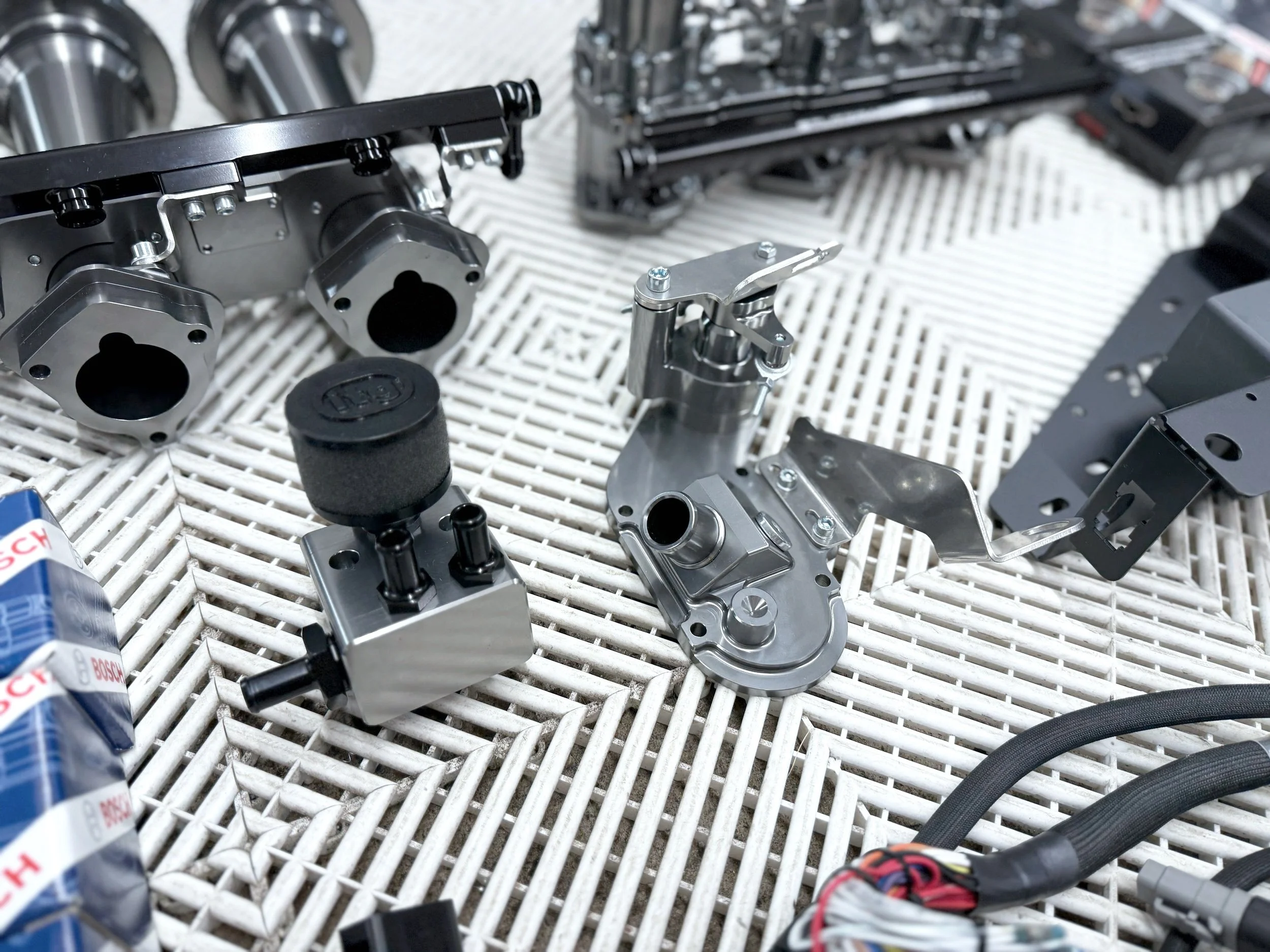

  • Vacuum system - includes vacuum block, non-return valves and associated interfacing pipework for brake boost assistance

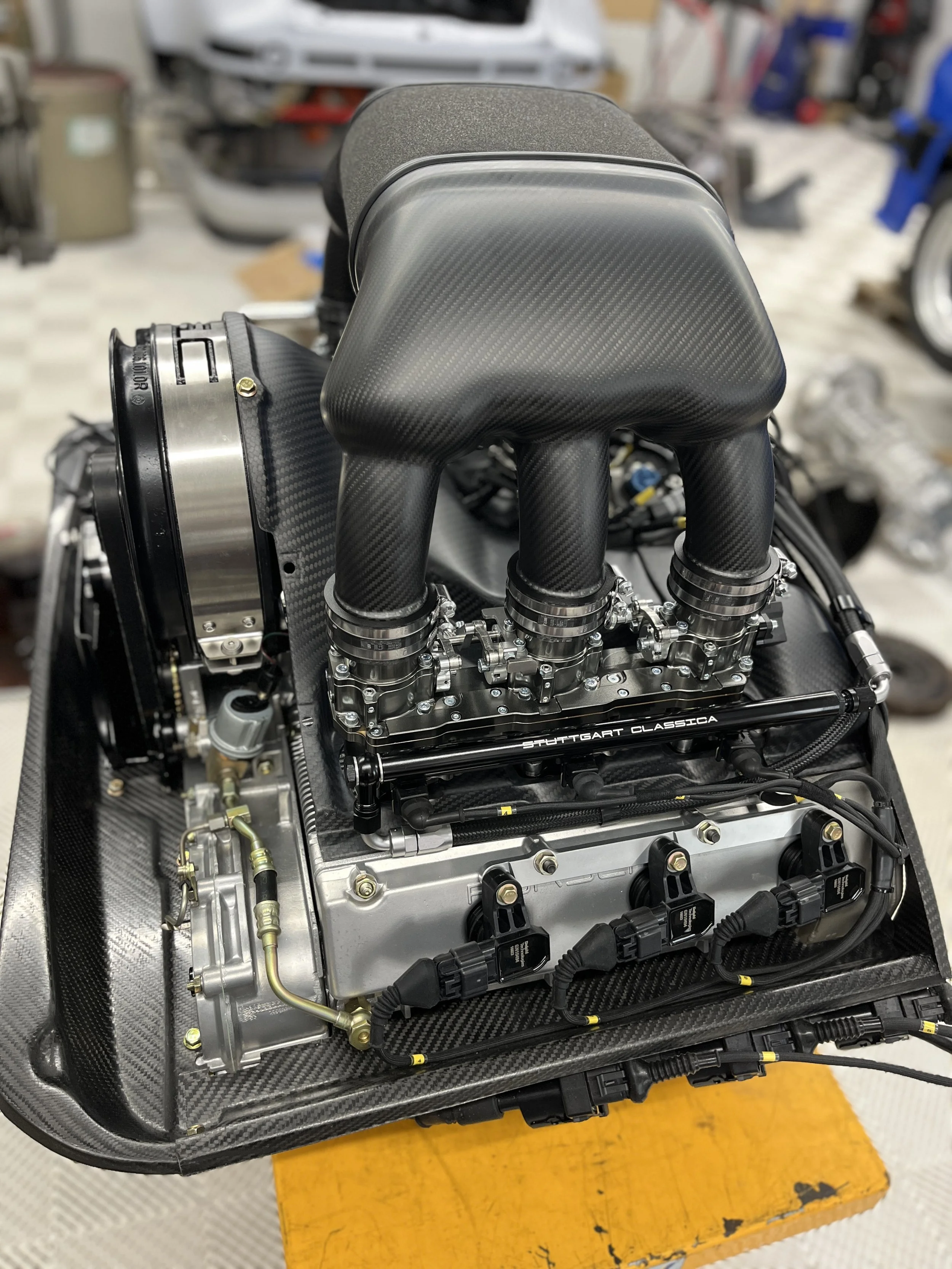

  • Option of big bore trumpets or our Carbon fibre GT3 Plenums and filter

As for engine management, this kit includes the following:

  • Option of Emtron Shadow 8 or Motec M130 ECU with GPA package

  • Full pre-built clubsport engine harness with engine bay ECU mount and connectors for the following:

    • Cam sensor (comes with sensor and bracket)

    • Crank sensor

    • Throttle position sensor (already attached to the ITBs)

    • 6 coil on plug and connectors for a lower coil on plug harness to be added for twin spark applications (coil packs included)

    • Inlet air temperature sensor (sensor included)

    • Idle air control valve (valve included)

    • Fuel pressure & temperature (sensor included)

    • Engine temperature (sensor included)

    • Knock sensor x 2 (sensors included)

    • Lambda sensor x 2 (sensors included)

    • Oil pressure and temperature (sensor and adapter included)

  • The engine harness is built from high-temp fiberglass sleeving resistant to temperatures up to 1200°F (650°C). Non-combustible and resistant to cut and abrasion.

  • OEM Grade TXL Wire compliant to SAE J1128 Standard. Temperature Rated between -40°F and 257°F (-40°C and 125°C). Featuring XPLE insulation, TXL wire possesses flame retardant properties and protection from chemical exposure like gasoline, coolant, and most acids or solvents.

  • Bussman Fuse & Relay Center to power EFI System, Fuel Pump, and Ignition Coils.

PLEASE NOTE - as with all after-market engine management systems, dyno tuning is required. We can provide details of tuners that are willing to tune remotely and travel to map your vehicle.
